Categories - Jump to: Breakdown | Analysis | Third party
Breakdown plugins - Jump to: Field Breakdown | Two Field Breakdown | Unique Combinations | Polymorphisms | Publication Breakdown | Sequence Bin Breakdown
Summary: Breakdown of query results by field

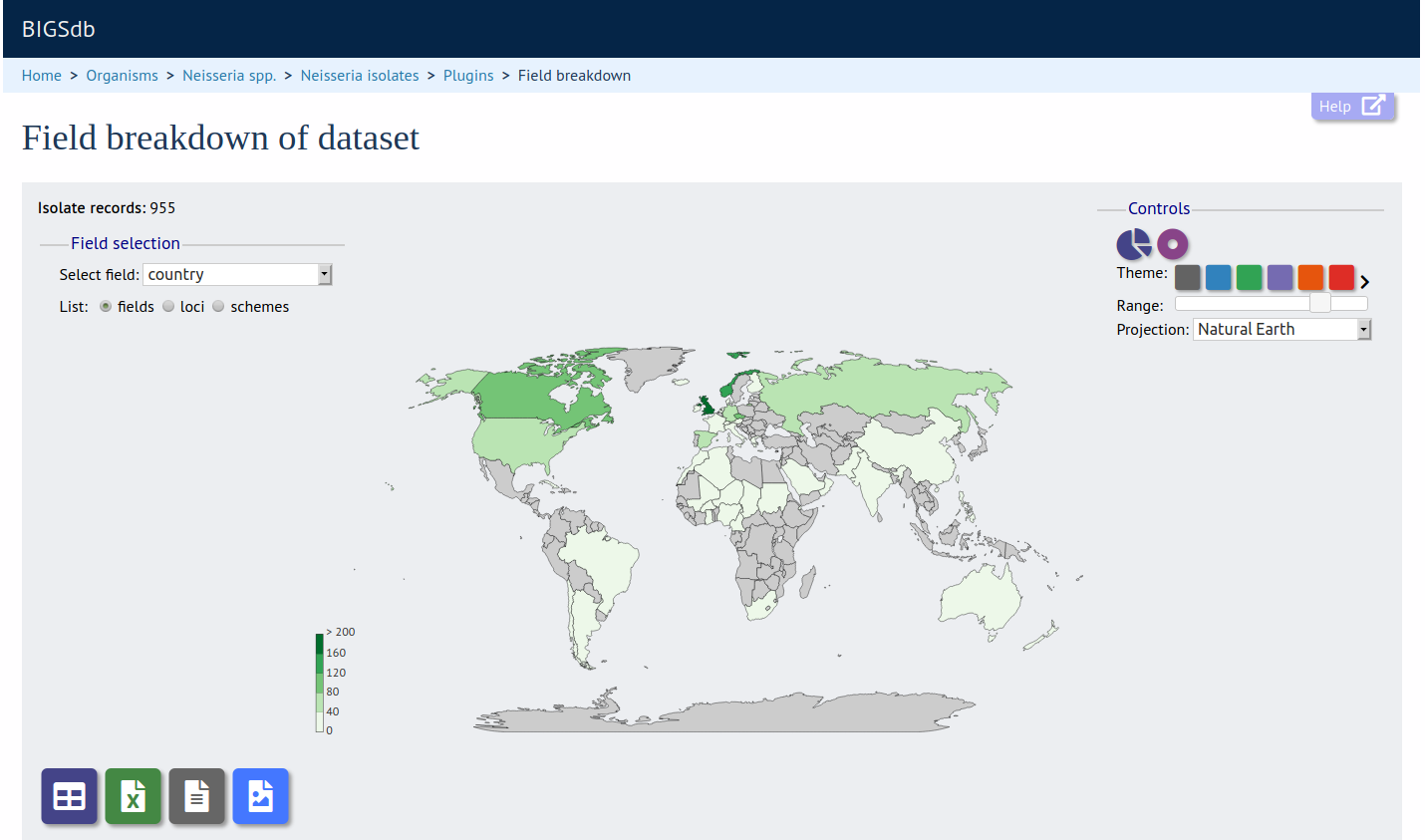

The field breakdown plugin displays the frequency of each value for fields, alleles and schemes. Output is in the form of dynamic charts, maps, and tables. Data can be exported as an Excel file, SVG image, or FASTA file.

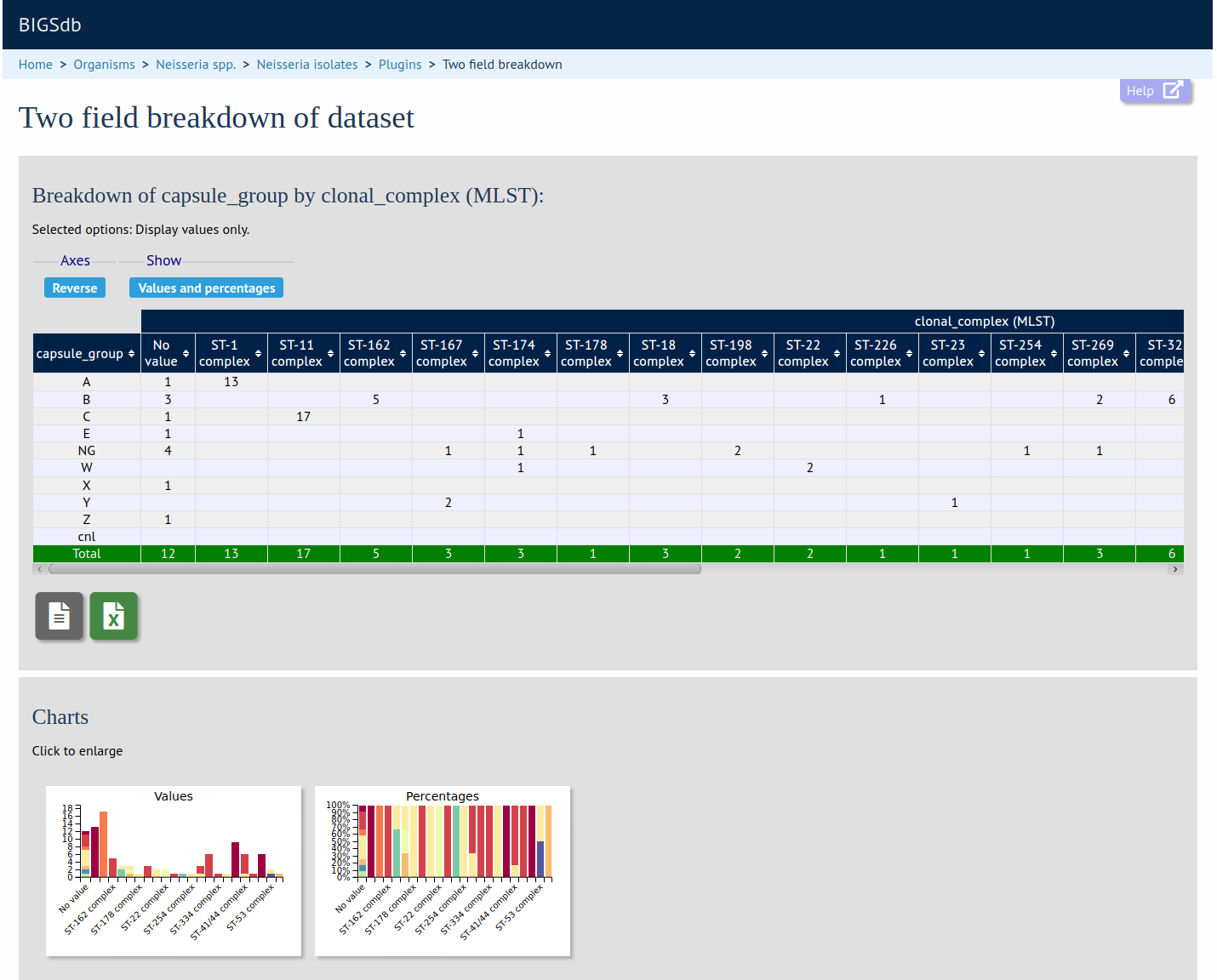

Two Field Breakdown
Summary: Breakdown of one field against another
The two field breakdown plugin generates a table breaking down the frequencies of one field against another. This is analagous to a spreadsheet pivot table. Any primary metadata field, locus, or scheme field can be used and the output can be exported as an Excel spreadsheet.
Summary: Determine frequencies of unique field combinations

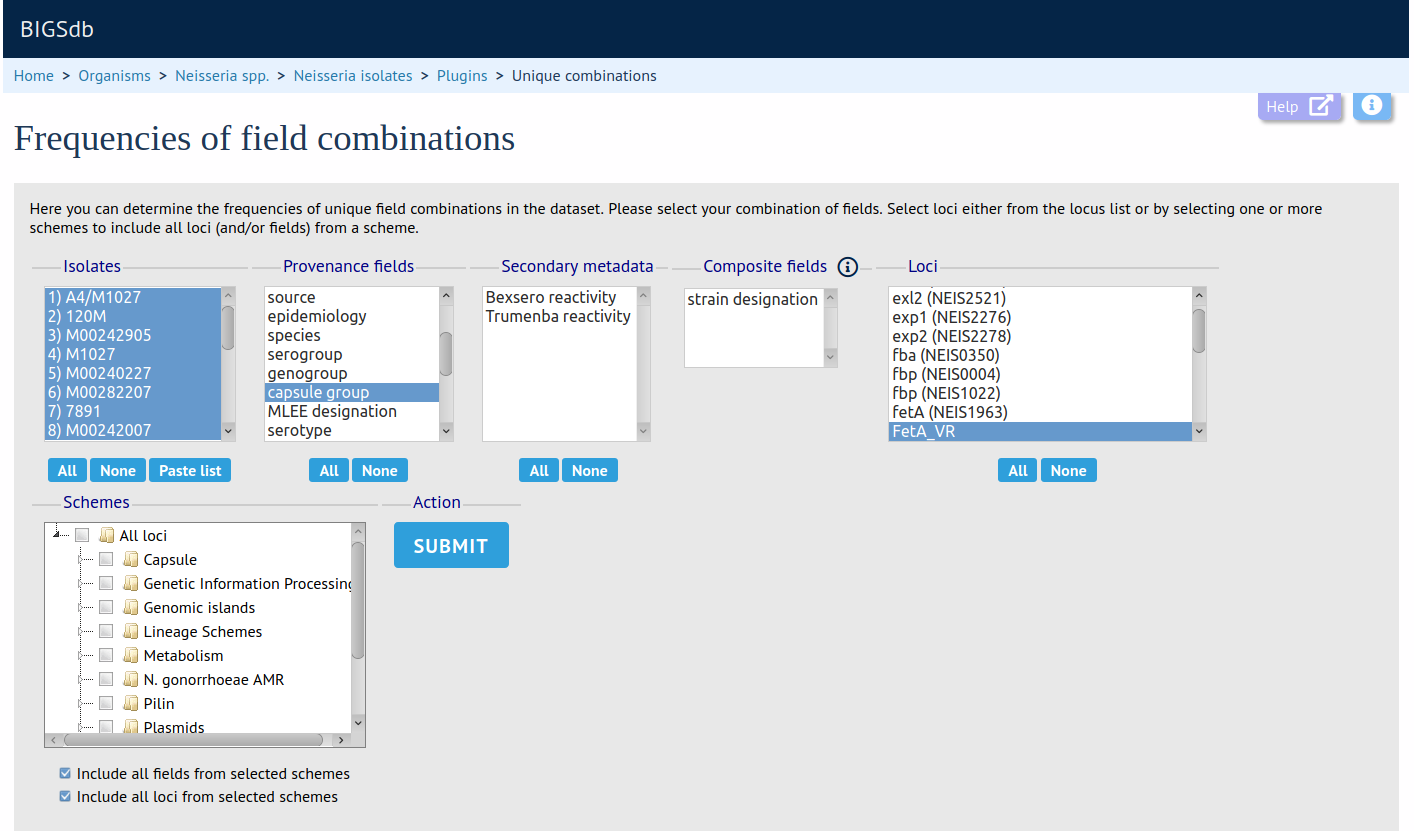

The Unique Combinations plugin calculates the frequencies of unique file combinations within an isolate dataset. Primary metadata fields, allele designations and scheme fields can be combined. Results are returned in an Excel spreadsheet.
Summary: Tool for analysing polymorphic sites for particular locus in an isolate dataset

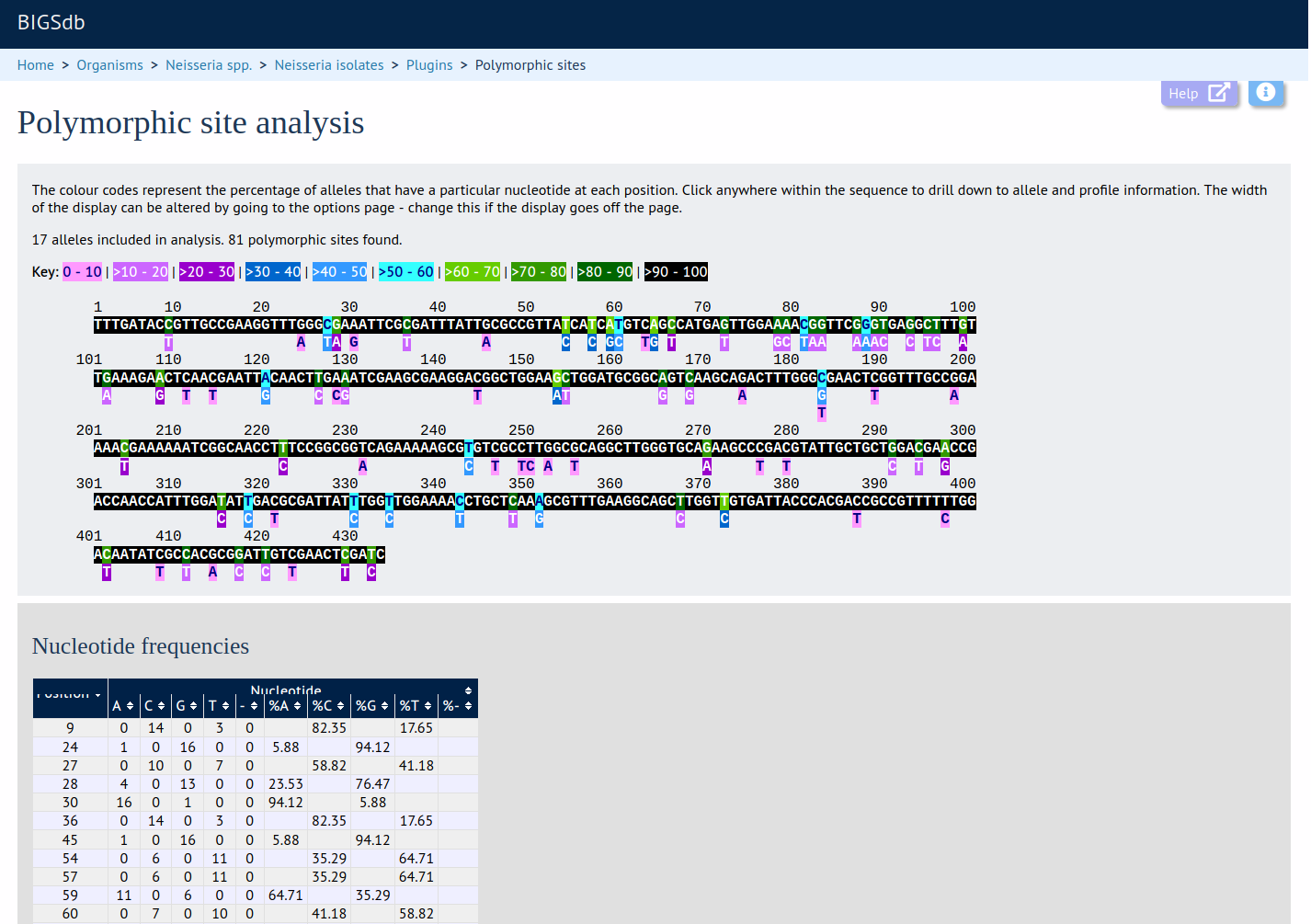

This plugin generates a schematic of the selected locus showing all the polymorphic sites present in the selected dataset. These are also shown in a tabular form with precise frequencies for each nucleotide at every position.
Summary: Breakdown of query results by publication

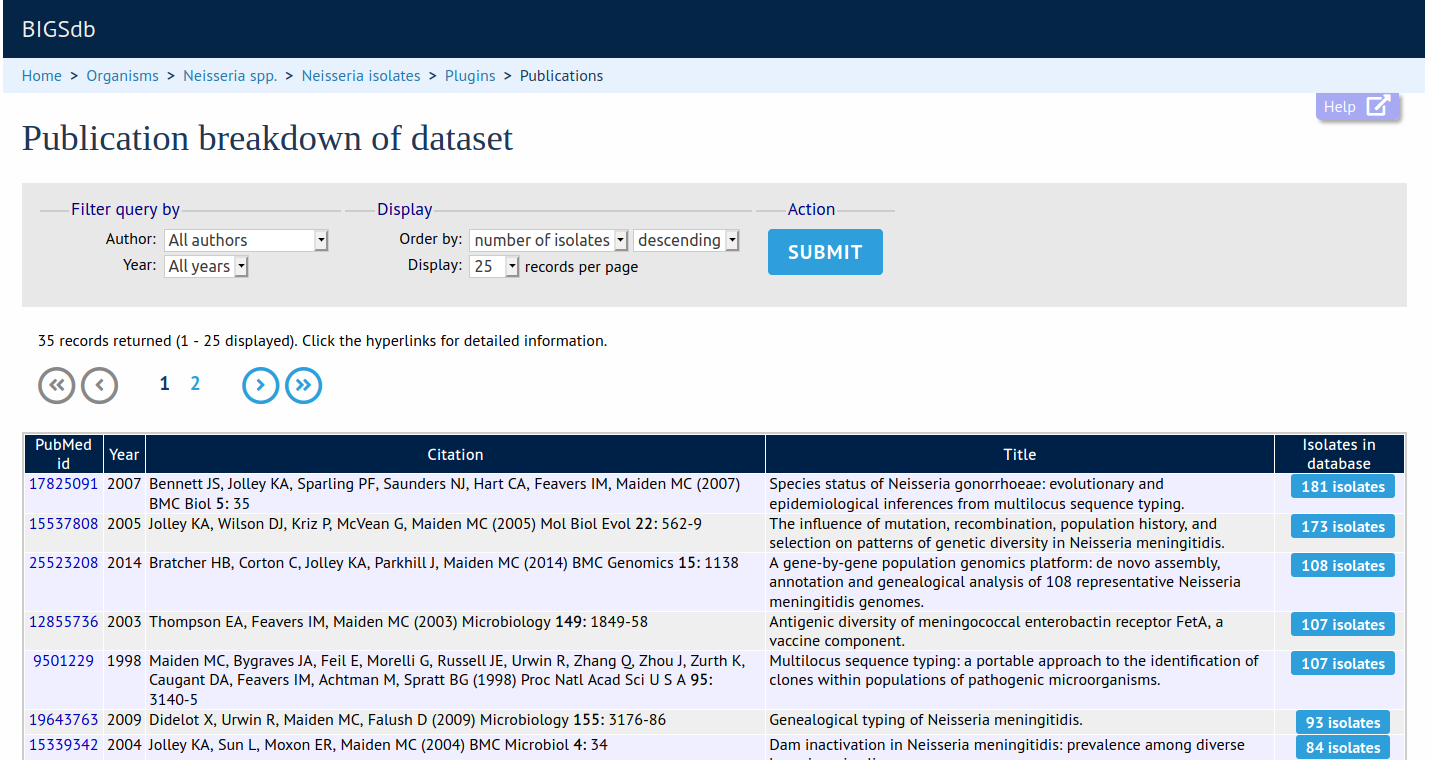

This plugin shows all publications linked to isolates in a query dataset or within the whole database. The results can be filtered by author or year. The output includes full citation details and a link to display all isolates linked to any listed publication.
Launch 'Publication Breakdown'
Sequence Bin Breakdown
Summary: Breakdown of sequence bin contig properties

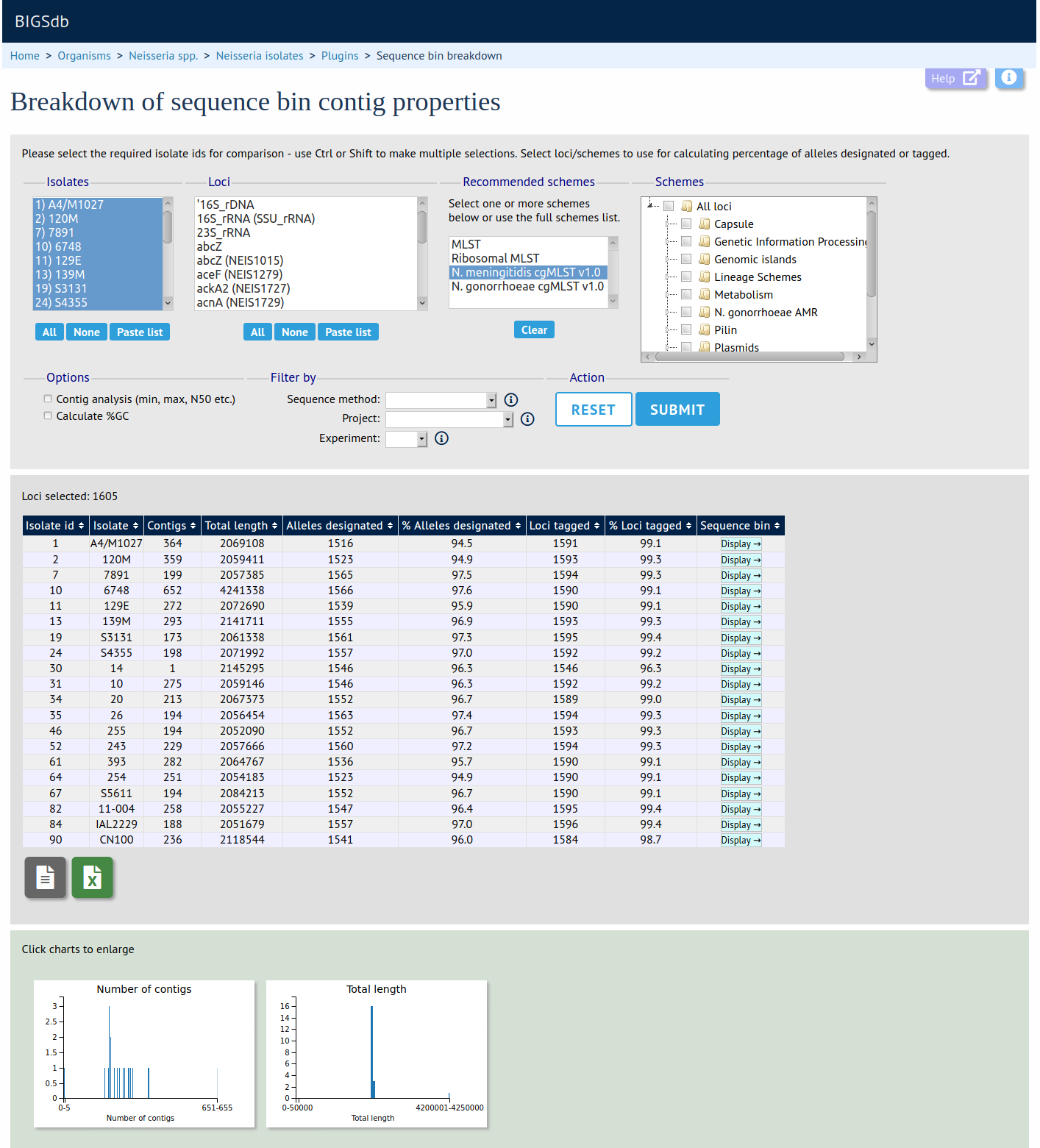

The sequence bin breakdown plugin calculates statistics based on the number and length of contigs in the sequence bin as well as the number of loci tagged for each isolate record. Using this latter metric against a cgMLST scheme can be a good indicator of genome quality. Values for number of contigs, total sequence length, mean contig length and contig length distribution are charted.
Launch 'Sequence Bin Breakdown'
Analysis plugins - Jump to: BURST | Codon Usage | Gene Presence | Genome Comparator | BLAST | rMLST species identity | PCR

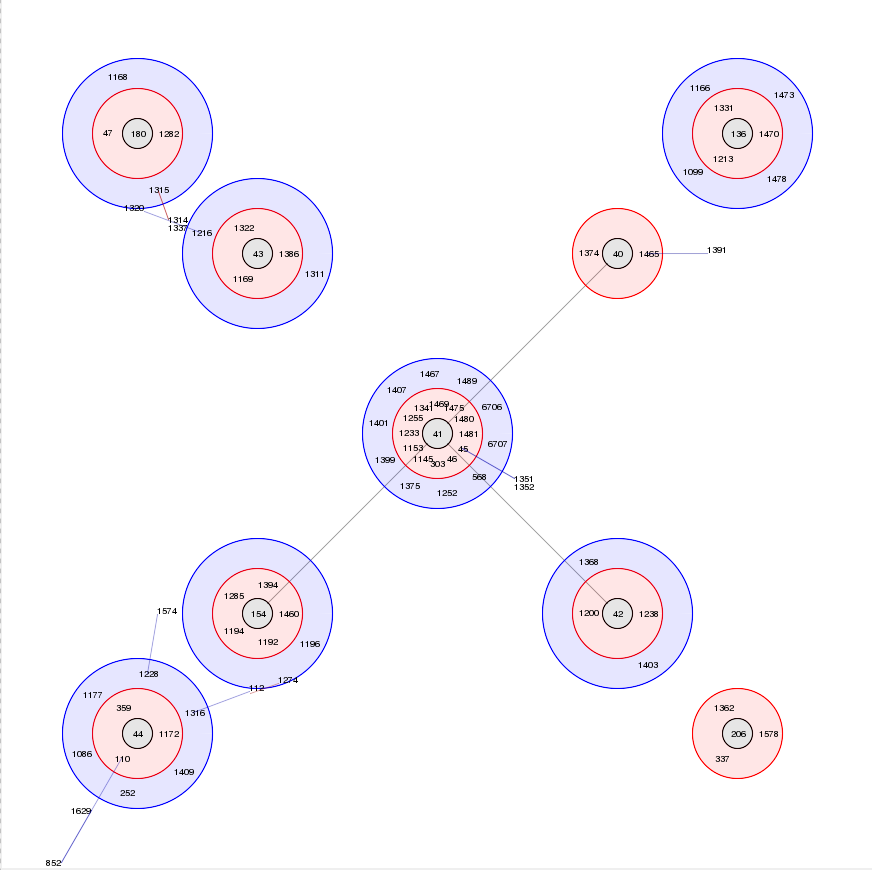

Summary: Perform BURST cluster analysis on query results query results
BURST is an algorithm used to group MLST-type data based on a count of the number of profiles that match each other at specified numbers of loci. The analysis is available for both sequence definition database and isolate database schemes that have primary key fields set. Analysis is limited to 1000 or fewer records.

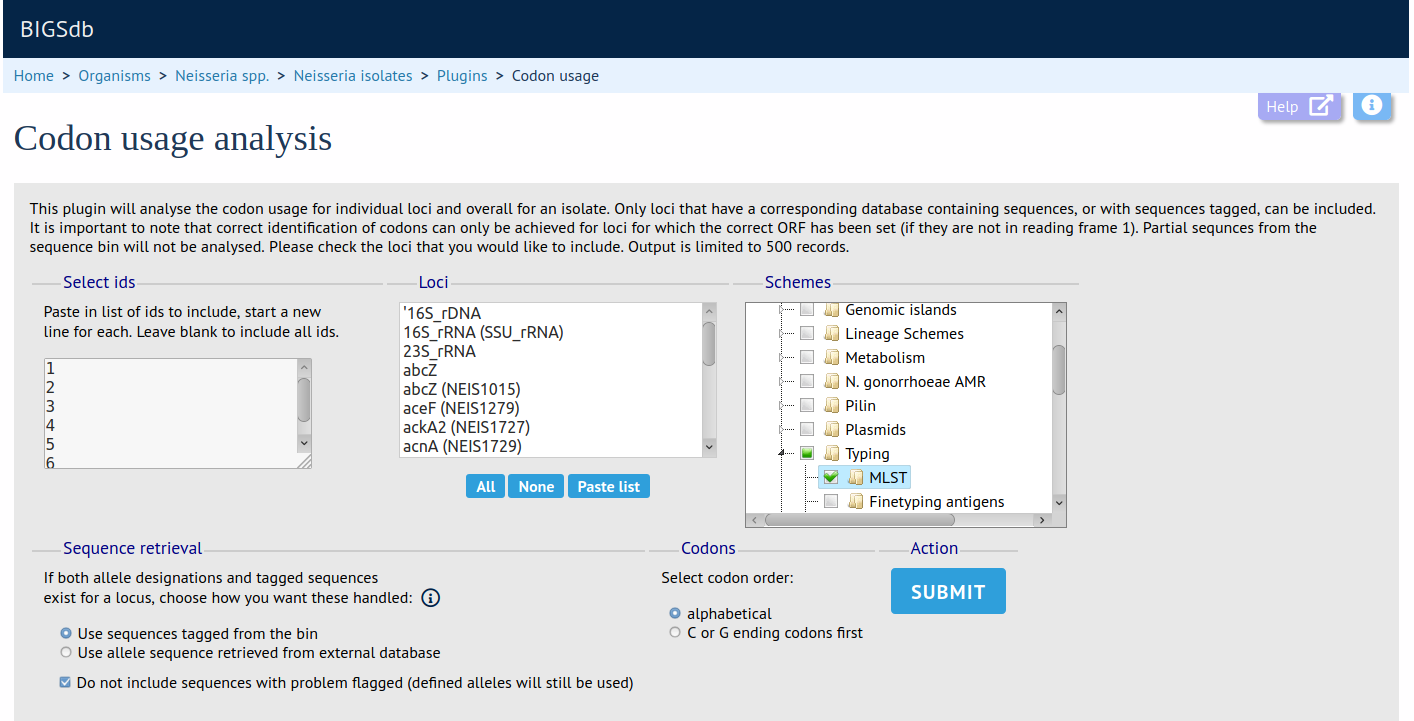

Summary: Determine codon usage for specified loci for an isolate database query
The codon usage plugin calculates the absolute and relative synonymous codon usage by isolate and by locus for any dataset or the whole database. Specific loci or the loci that are members of a particular scheme can be chosen for analysis.

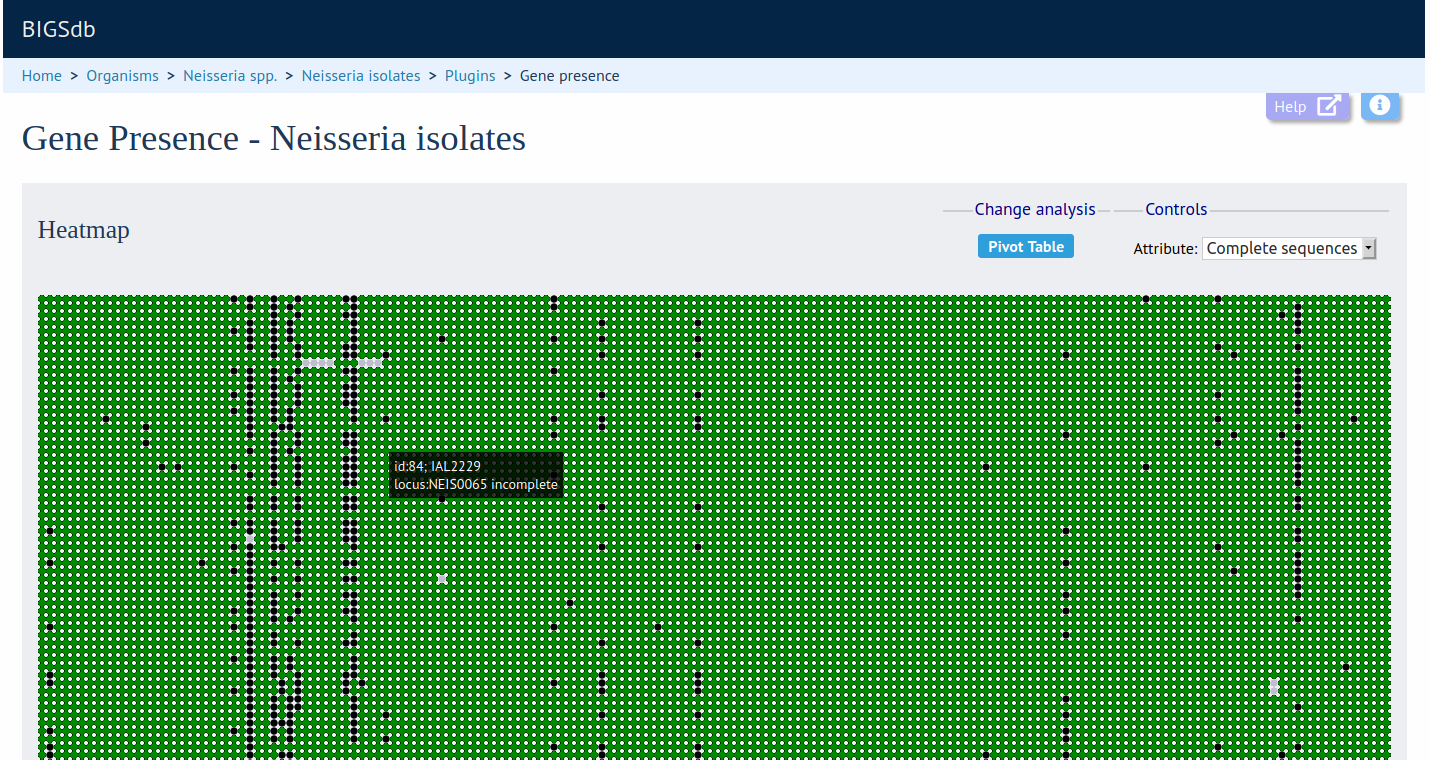

Summary: Analyse presence/absence of loci for dataset generated from query results
The Gene Presence analysis tool will determine whether loci are present or absent, incomplete, have alleles designated, or sequence regions tagged for selected isolates and loci. If a genome is present and a locus designation not set in the database, then the presence and completion status are determined by scanning the genomes. The results can be displayed as interactive pivot tables or a heatmap. The analysis is limited to 500,000 data points (locus x isolates).
Summary: Compare genomes at defined loci or against loci defined in a reference genome
Genome Comparator is used to compare whole genome data of isolates within the database using either the database defined loci or the coding sequences of an annotated genome as the comparator. Output is equivalent to a whole genome MLST profile, a distance matrix calculated based on allelic differences and a NeighborNet graph generated from this distance matrix. The analysis facilitates the determination of precisely which loci vary among isolates. Additionally, user-uploaded genomes that are not contained in the database can be analysed alongside genomes that are.

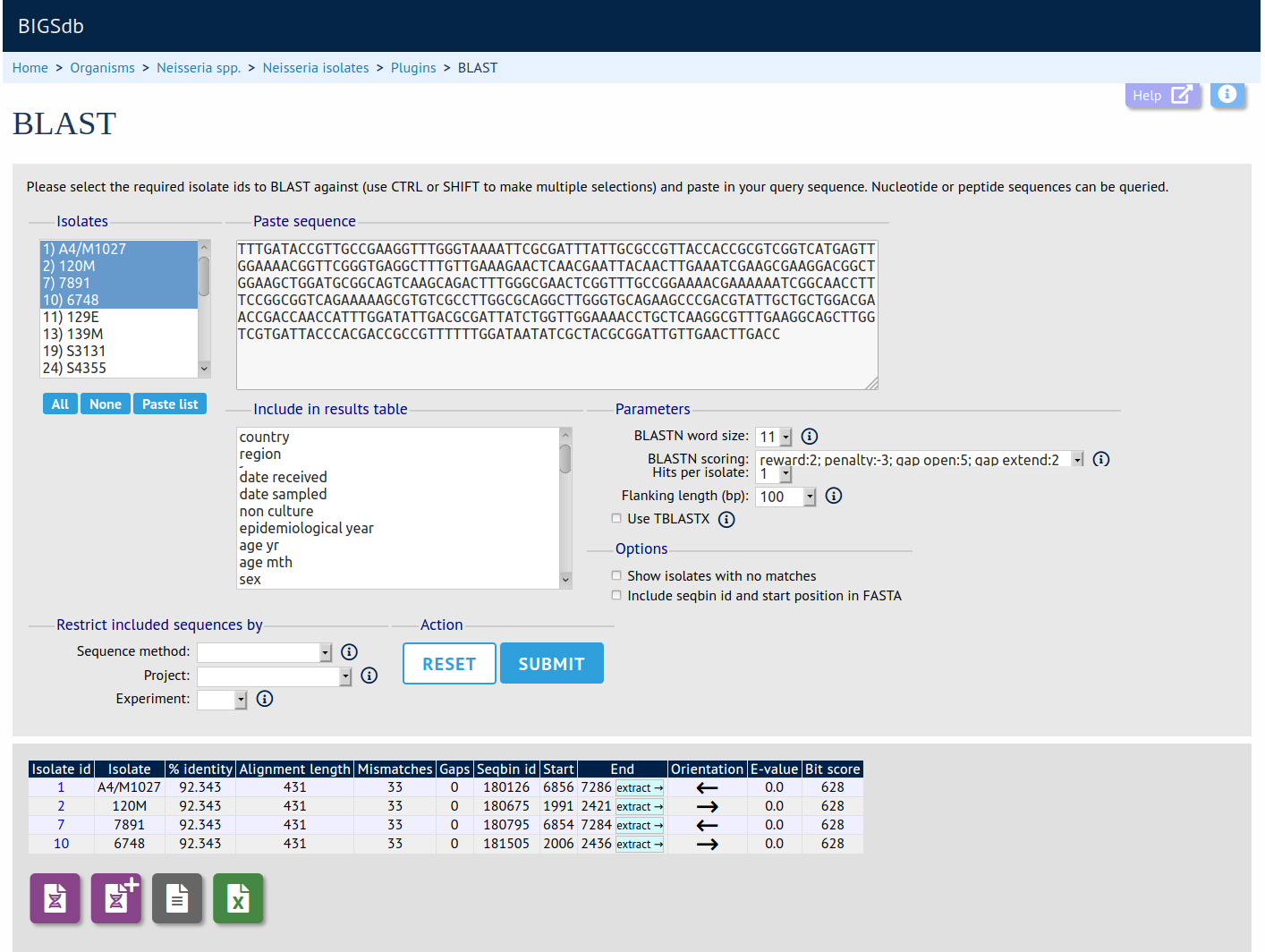

Summary: BLAST a query sequence against selected isolate data
The BLAST plugin enables you to BLAST a sequence against any of the genomes in the database, displaying a table of matches which can be downloaded in Excel format. In addition, the matched sequence regions are made available for download in FASTA format, either with or without surrounding flanking sequence.
rMLST species identity
Summary: Use rMLST to identify species from bacterial genome assemblies

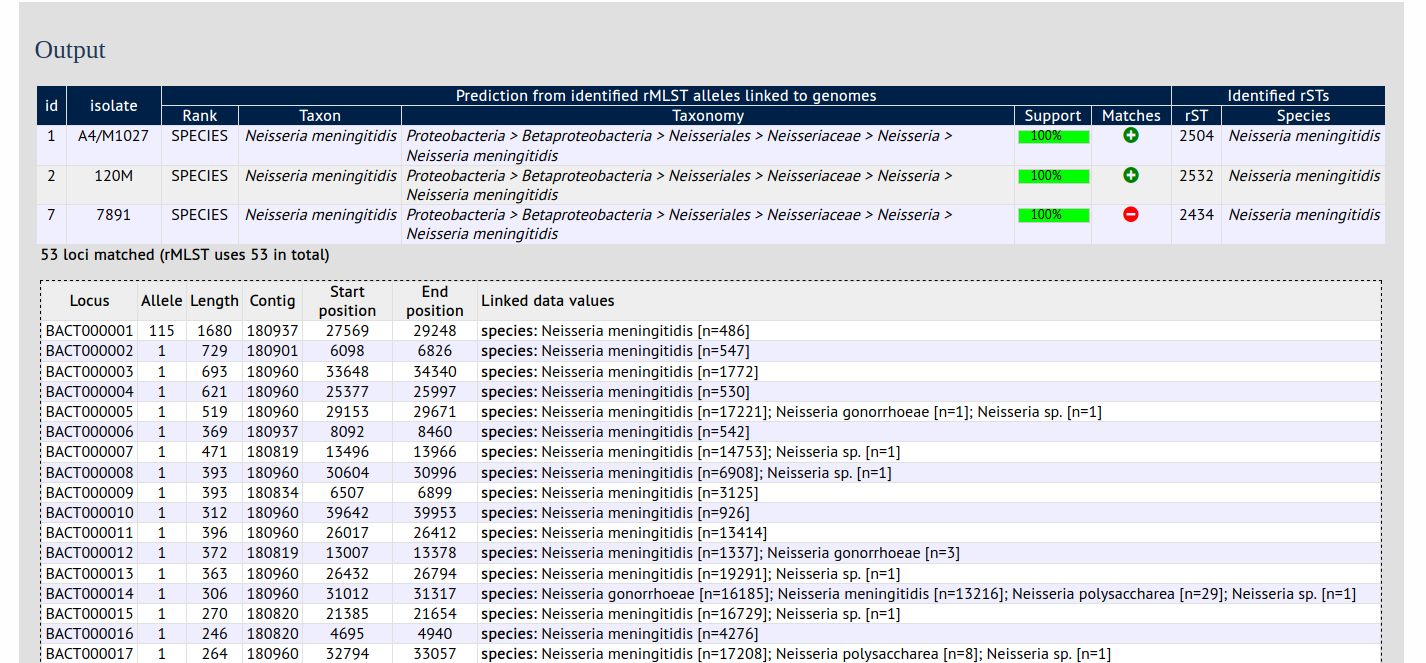

The species identification tool extracts ribosomal MLST alleles from genomes and determines the species based on the count of alleles that are uniquely found within a single species (or higher taxonomic rank if alleles unique to a species are not found). This is done by making a query via the PubMLST RESTful API to the rMLST typing database.
Launch 'rMLST species identity'

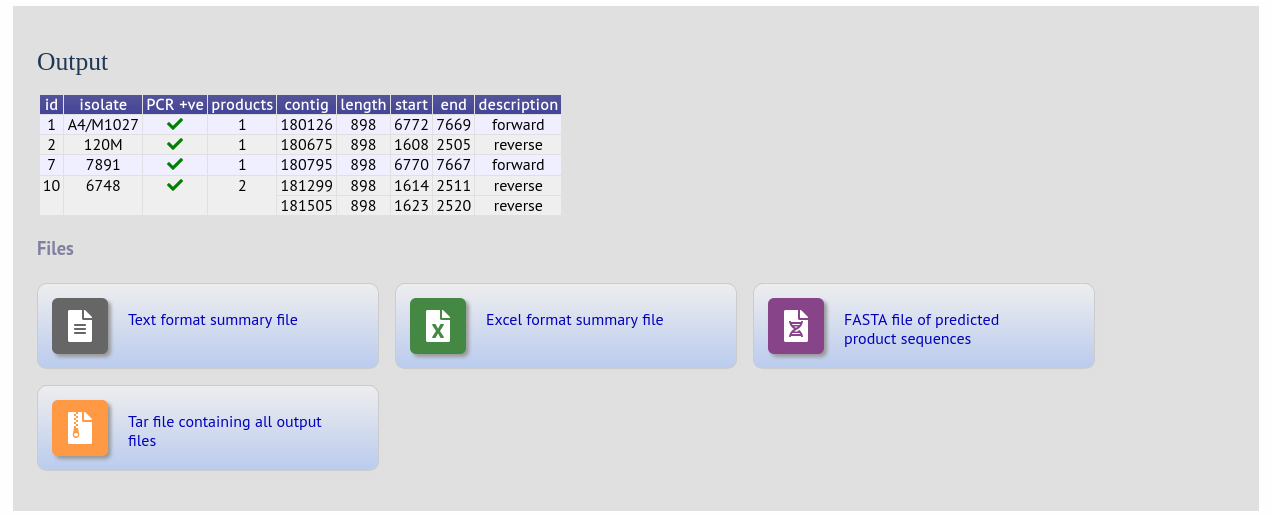

Summary: In silico PCR tool for designing and testing primers
The in silico PCR tool can be used to simulate PCR reactions run against genomes stored in the database. This is useful for designing and testing primers. The plugin uses the exonerate ipcress program to perform its simulation. Primers can contain wobble bases and the number of allowed mismatches for each primer can be set independently. The output is a table of predicted products, showing the number of products and their positions within a contig. It is also possible to export the predicted product sequence.
Third party plugins - Jump to: GrapeTree | iTOL | Microreact | PhyloViz
Summary: Visualization of genomic relationships

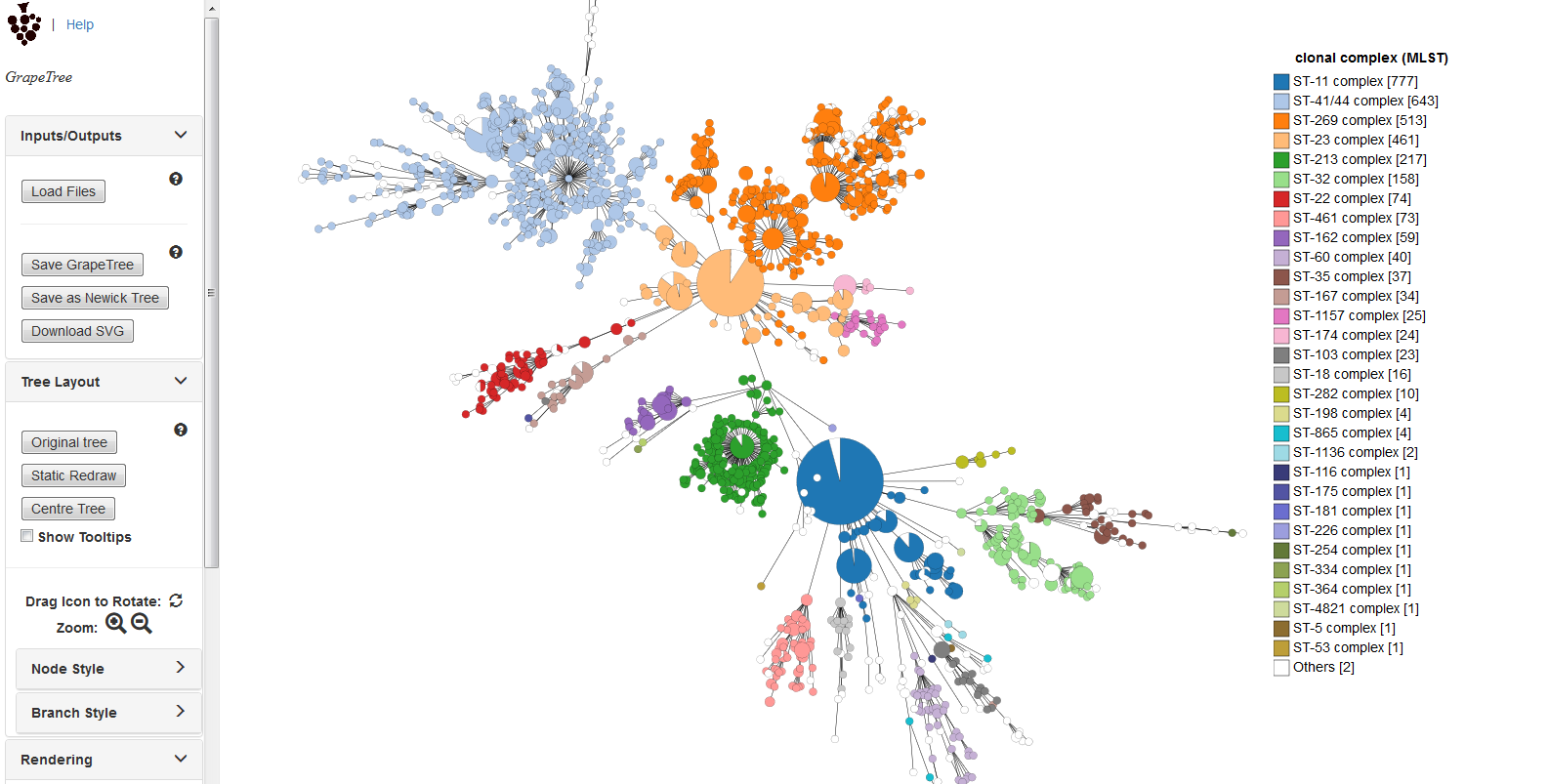

GrapeTree is a tool for generating and visualising minimum spanning trees (Zhou at al. 2018 Genome Res 28:1395-1404). It has been developed to handle large datasets (in the region of 1000s of genomes) and works with 1000s of loci as used in cgMLST. It uses an improved minimum spanning algorithm that is better able to handle missing data than alternative algorithms and is able to produce publication quality outputs. Datasets can include metadata which allows nodes in the resultant tree to be coloured interactively.
Summary: Phylogenetic trees with data overlays

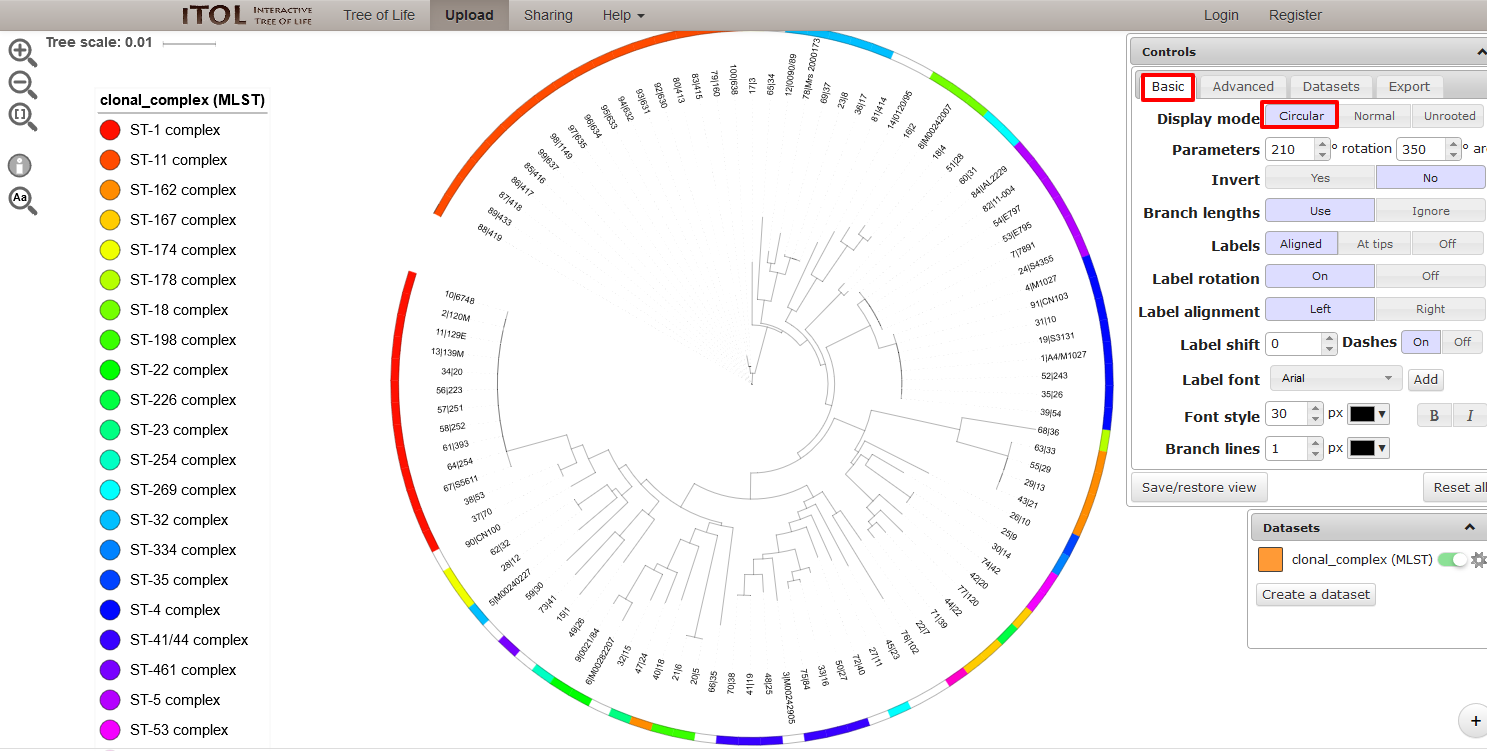

The ITOL plugin allows you to generate and visualise phylogenetic trees calculated from concatenated sequence alignments of selected loci (or the loci belonging to a particular scheme). Currently, only Neighbour-joining trees are supported. Datasets can include metadata which allows nodes in the resultant tree to be coloured. Datasets are uploaded to the Interactive Tree of Life website (Letunic & Bork 2016 Nucleic Acids Res 44(W1):W242-5) for visualisation.

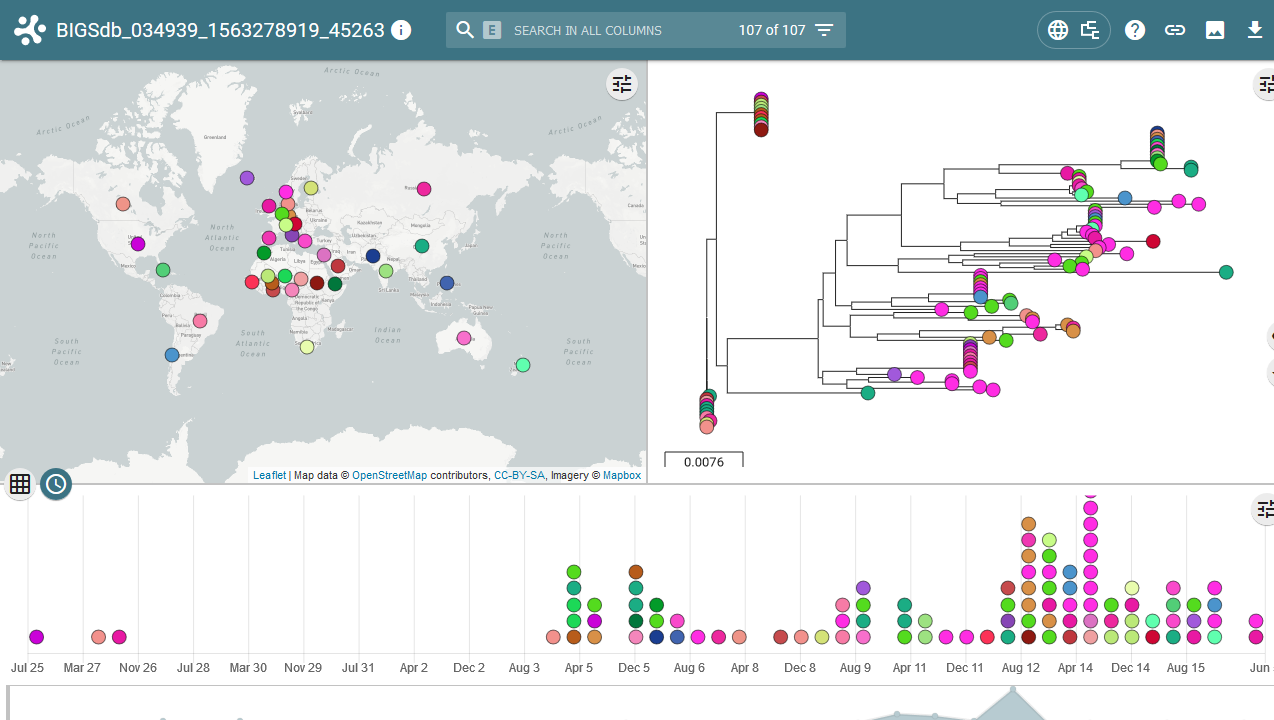

Summary: Open data visualization and sharing for genomic epidemiology
Microreact is a tool for visualising genomic epidemiology and phylogeography (Argimón et al 2016 Microb Genom 2:e000093). Individual nodes on a displayed tree are linked to nodes on a geographical map and/or timeline, making any spatial and temporal relationships between isolates apparent. The Microreact plugin generates Neighbour-joining trees from concatenated sequences for any selection of loci or schemes and uploads these, together with country and year field values, to the Microreact website for display.

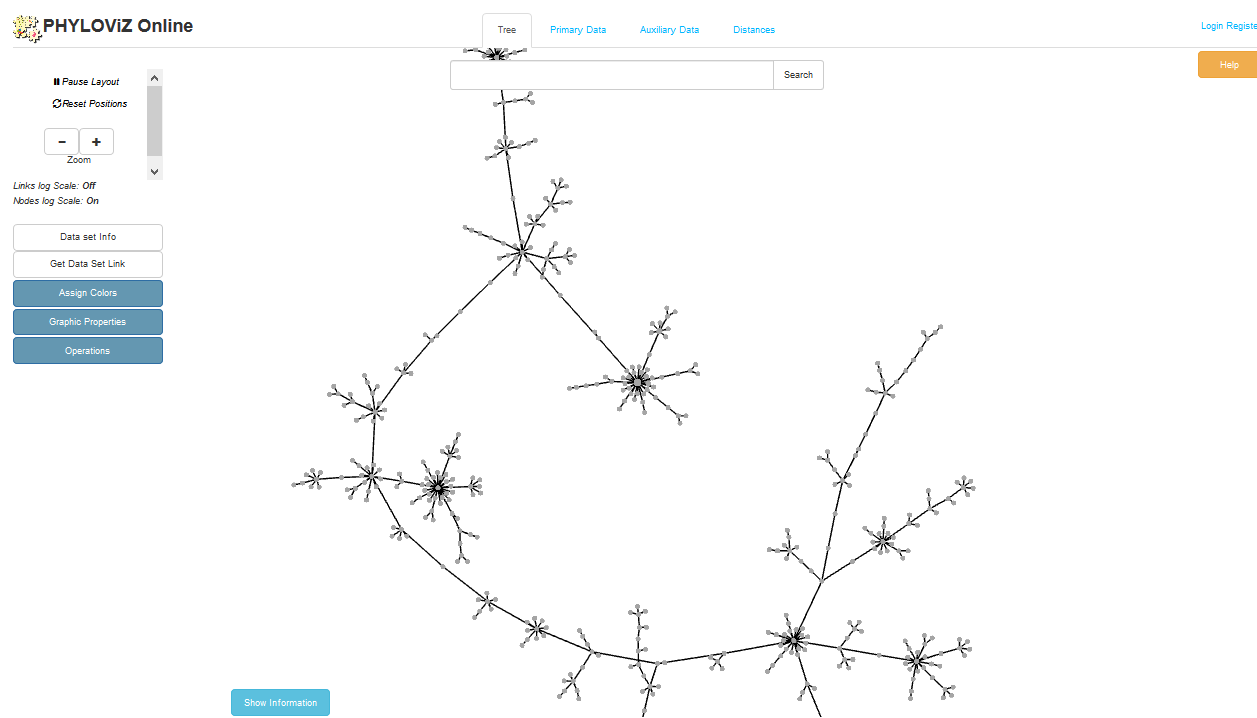

Summary: Creates phylogenetic inference and data visualization for sequence-based typing methods
PhyloViz Online is a tool for generating and visualising minimum-spanning trees based on allelic profiles. This plugin generates datasets that are then uploaded to PhyloViz Online for visualisation. Datasets can include metadata which allows nodes in the resultant tree to be coloured interactively.
